Empowering the Industry with Robust Structural Steel Detailing Solutions

Our Services

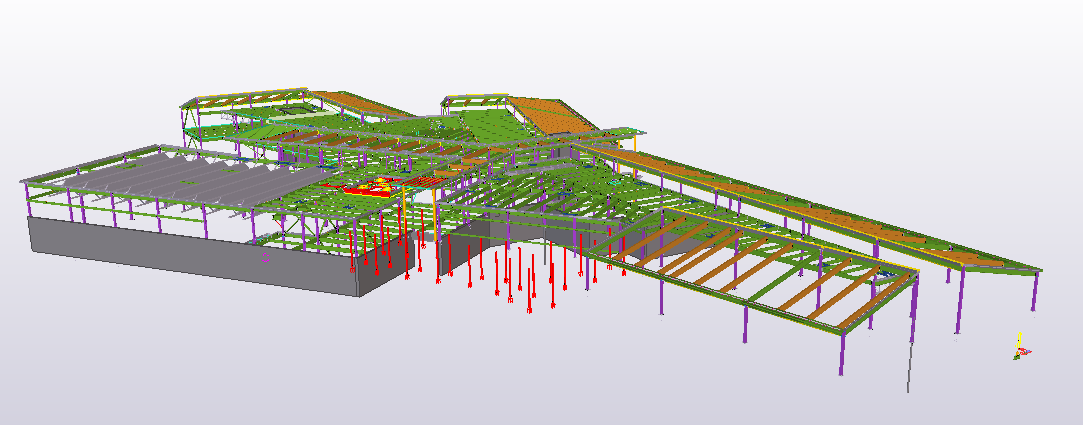

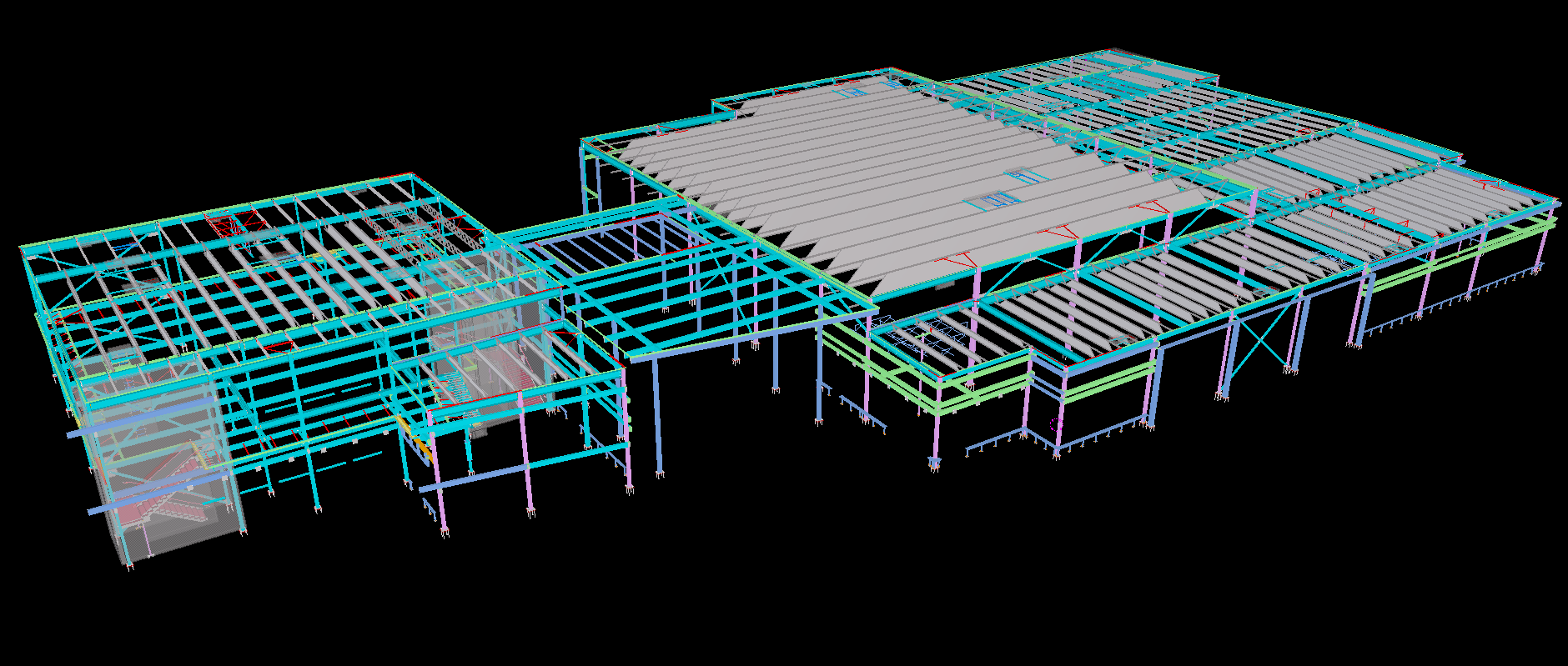

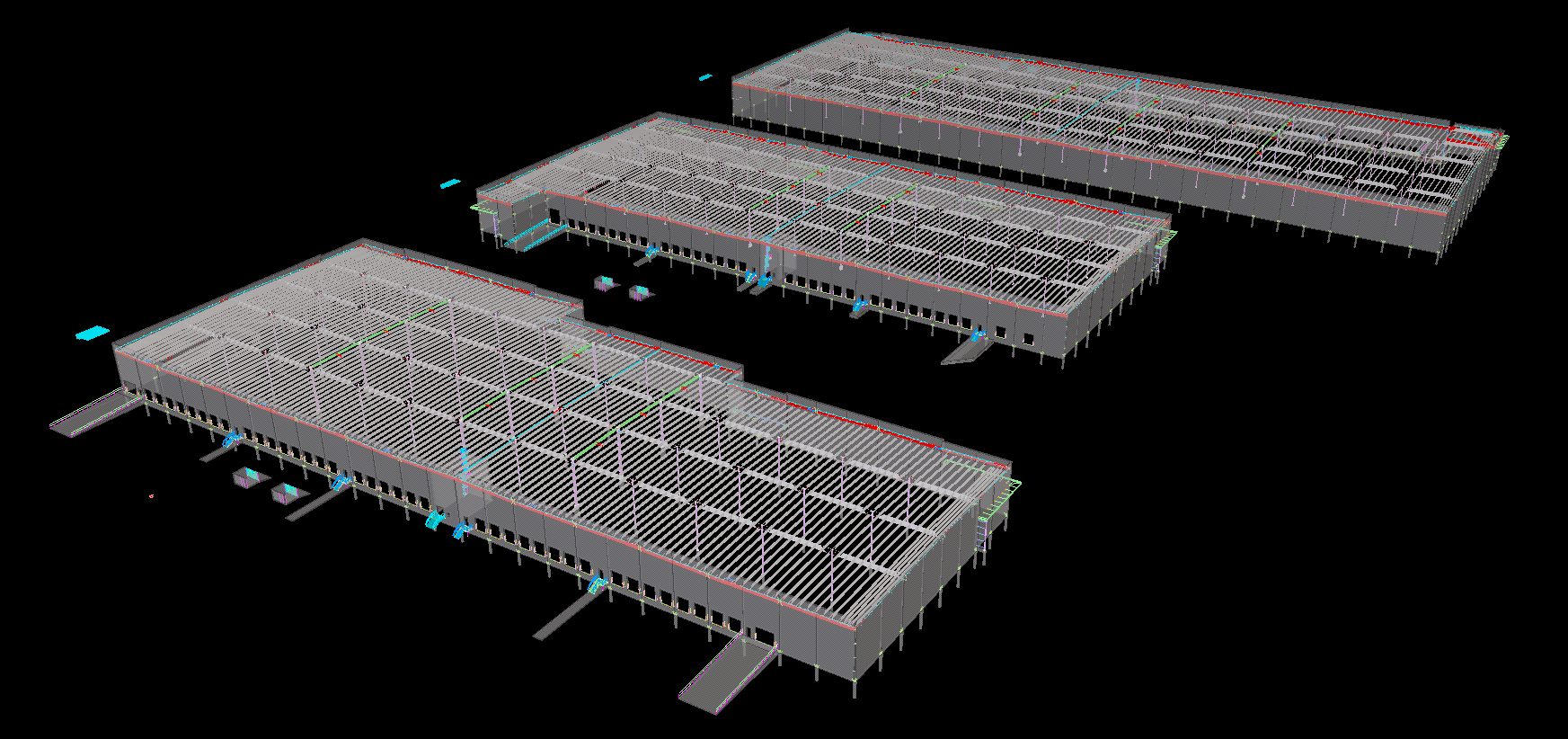

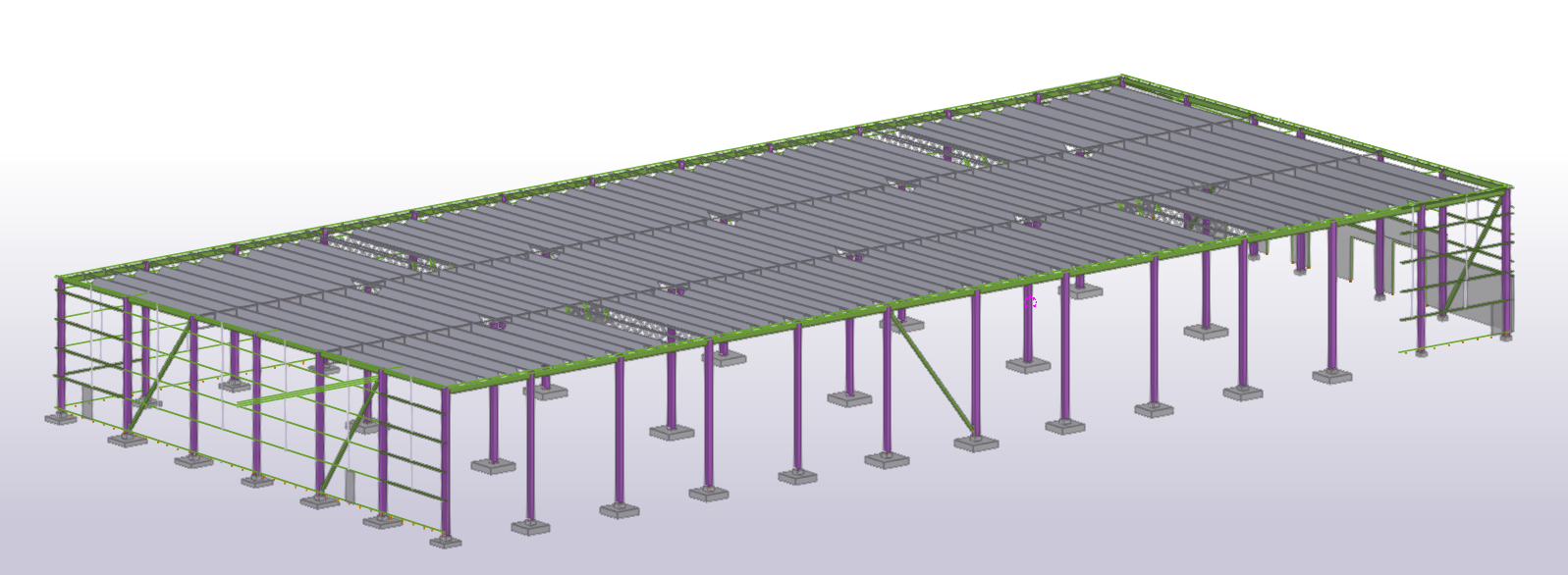

3D Modeling Of Steel Structure

Preparing an accurate 3D model of structural steel buildings using Tekla Structures software after a detailed & thorough study of contract drawings. This includes Main Steel (ABM & connections) and miscellaneous steel items like stairs, guardrails & ladders.

Detailed Erection Drawings

Creating detailed & effective Erection or General Arrangement drawings so that they can be easily interpreted by erectors on site as well as general contractors & architects.

Precise Assembly Drawings

Providing top quality, precise & accurate Assembly or Shop drawings thereby helping the fabricator to fabricate the steel without any complications & delivering the fabricated steel to the site on time.

Who we are

Structural Steel Detailing Hub

Based in India, we are a passionate team building 3D models and detailing steel structures.

Global Impact

We have been working with clients from all around the globe including the US, UK & Canada

Quality Assured

Building a strong presence in the industry since 2019

What Clients Say

“Their attention to detail and commitment to quality ensured that our project was completed on time and within budget!”

Ryan Walderman Techmap Group

“Truly exceeded our expectations with their construction engineering services. Kudos to the whole team!”

Susan Parkar World Geo Systems

Let’s Discuss Your Project
